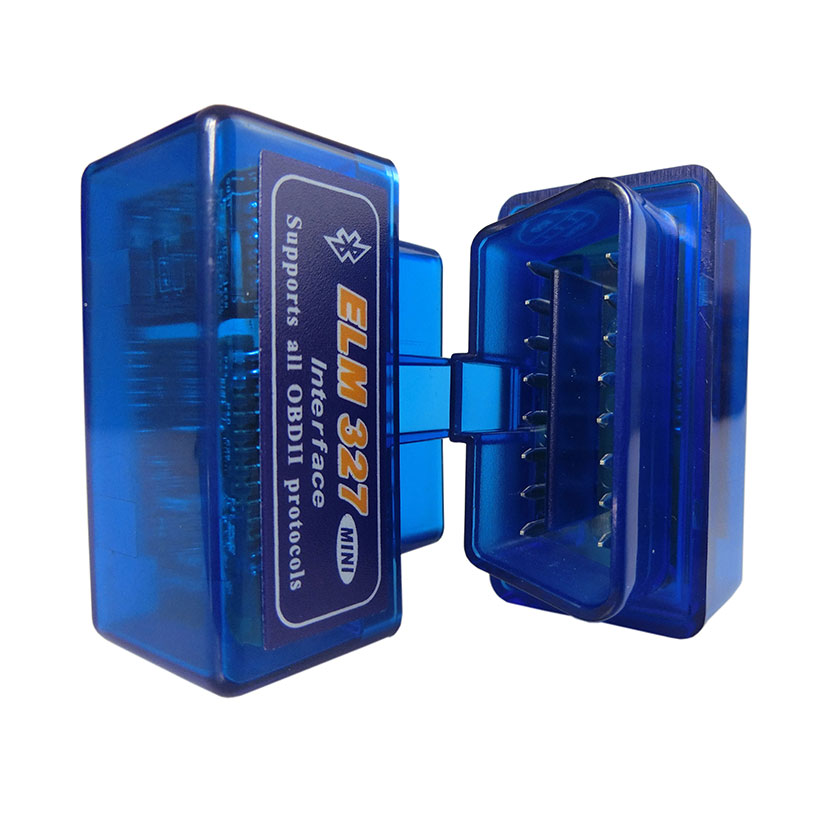

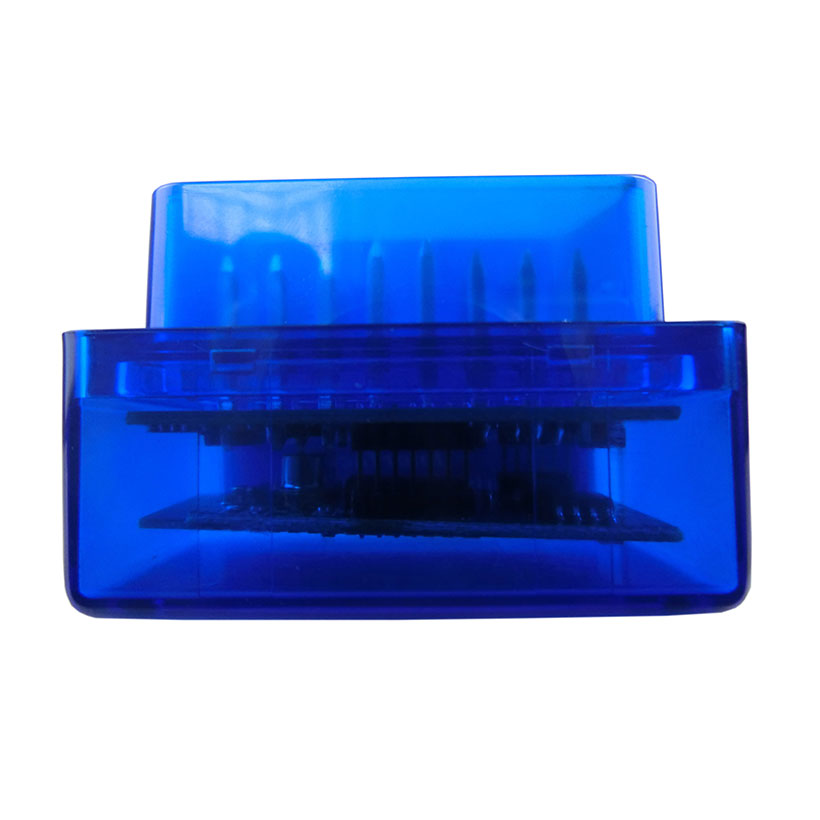

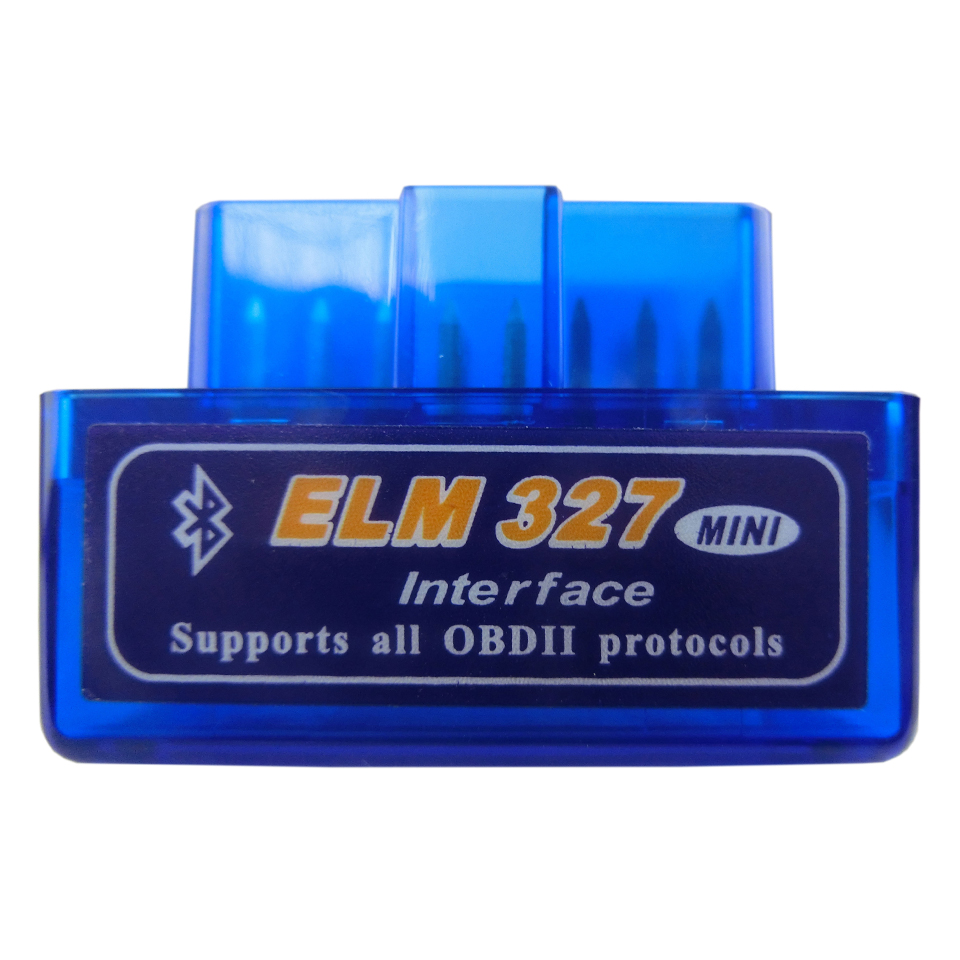

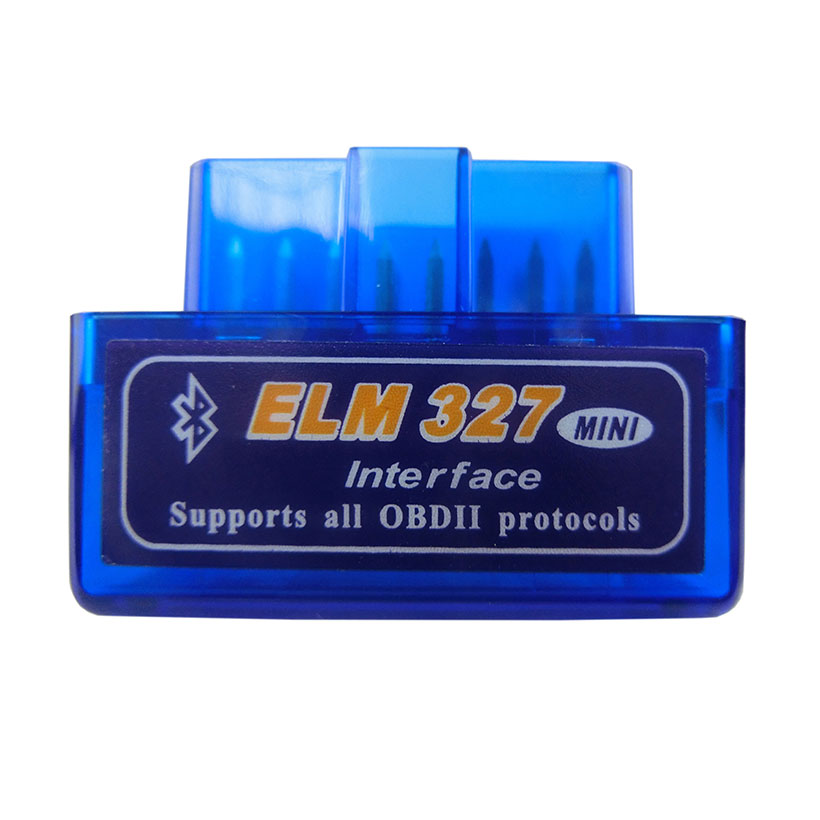

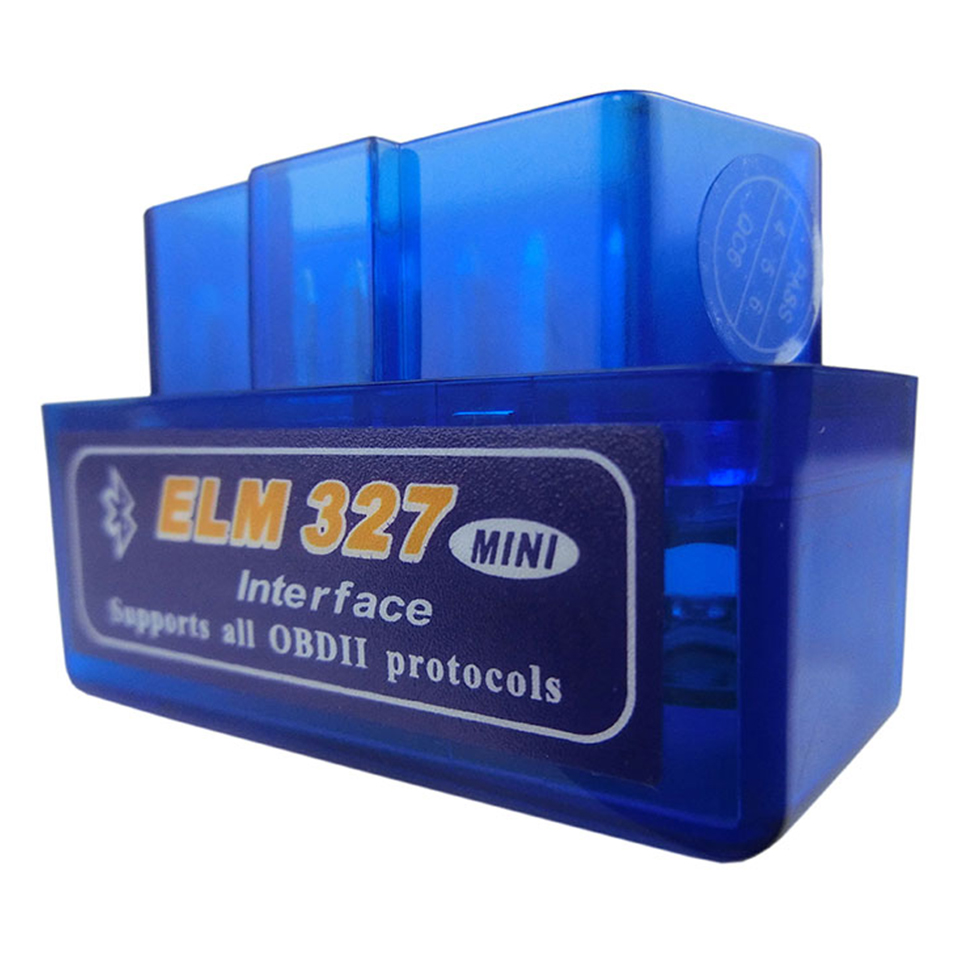

Super Mini Elm327 Bluetooth OBD2 V1.5 Elm 327 V 1.5 OBD 2 Auto Diagnostic Scanner For Car Elm-327 OBDII Code Diagnostic-Tools

         Buyer Tips:

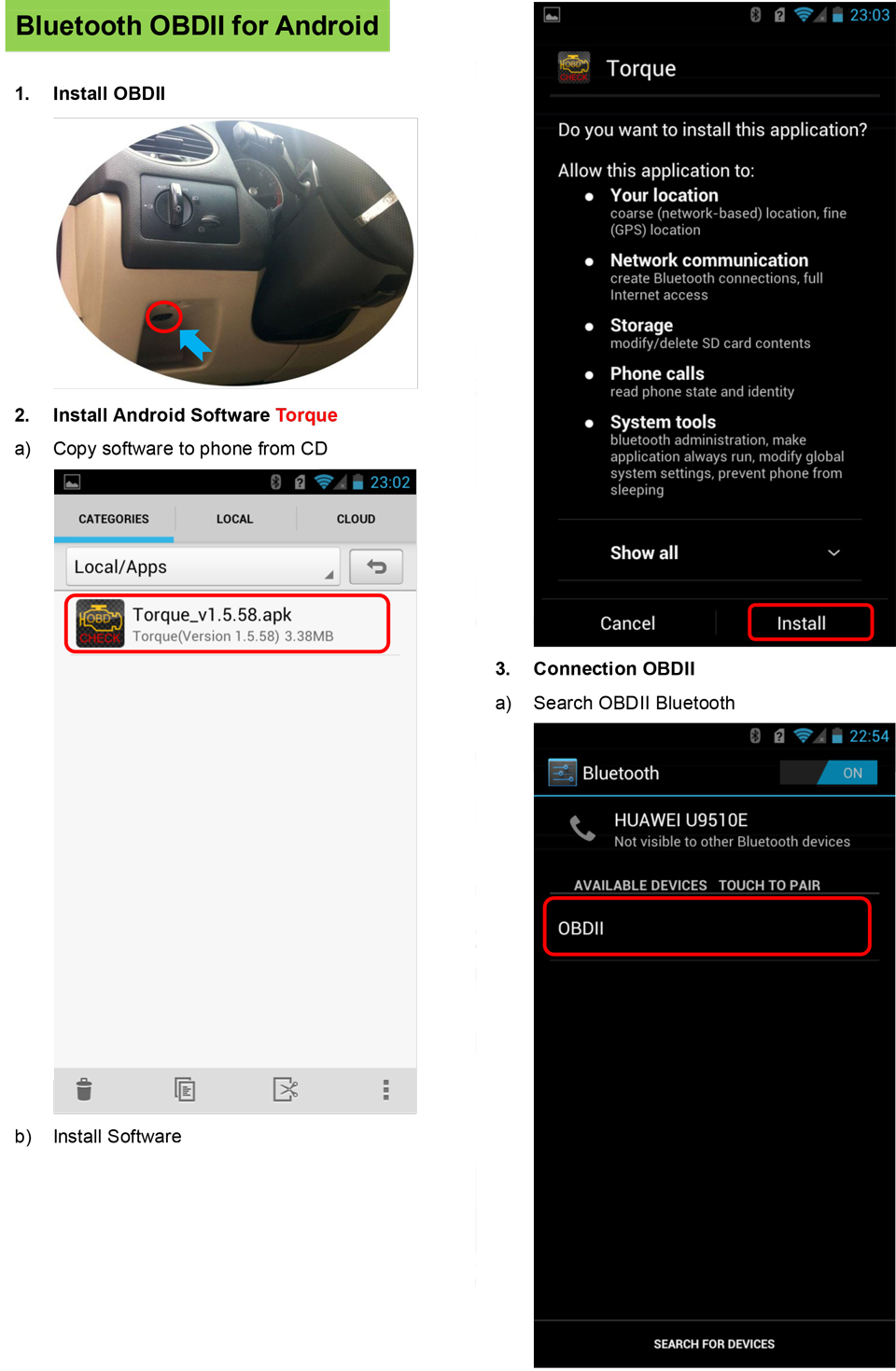

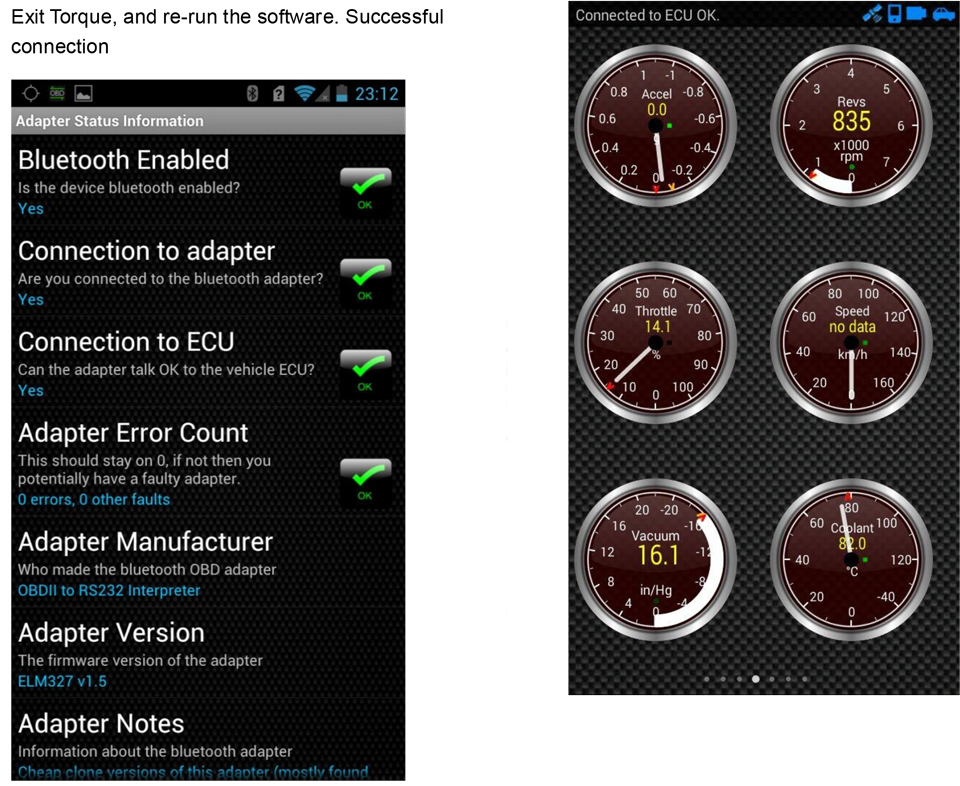

• Android version:Torque,OBD Car Doctor, Mini OBD, DashCommand,EOBD;

• Symbian version:OBDScope.

• This hardware can match many other software still!But most of them are not free!

• Elm327 bluetooth obd2 car diagnostic scanner main parameters:

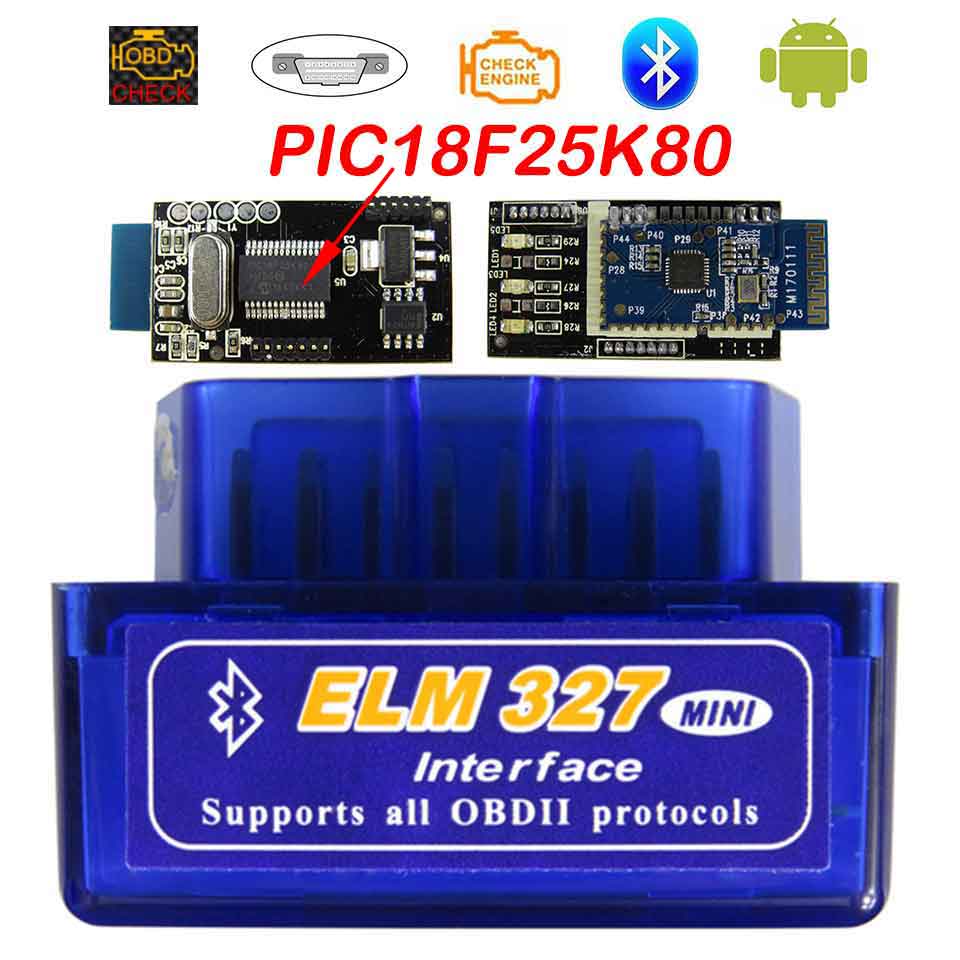

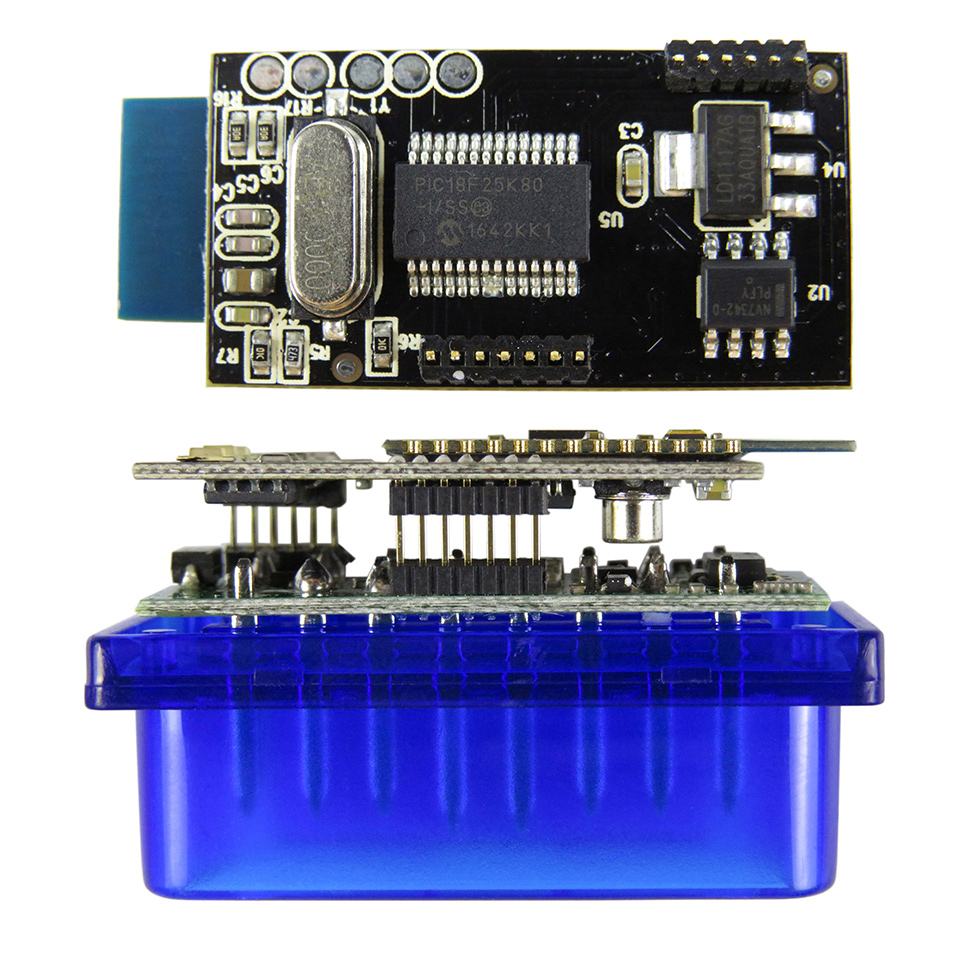

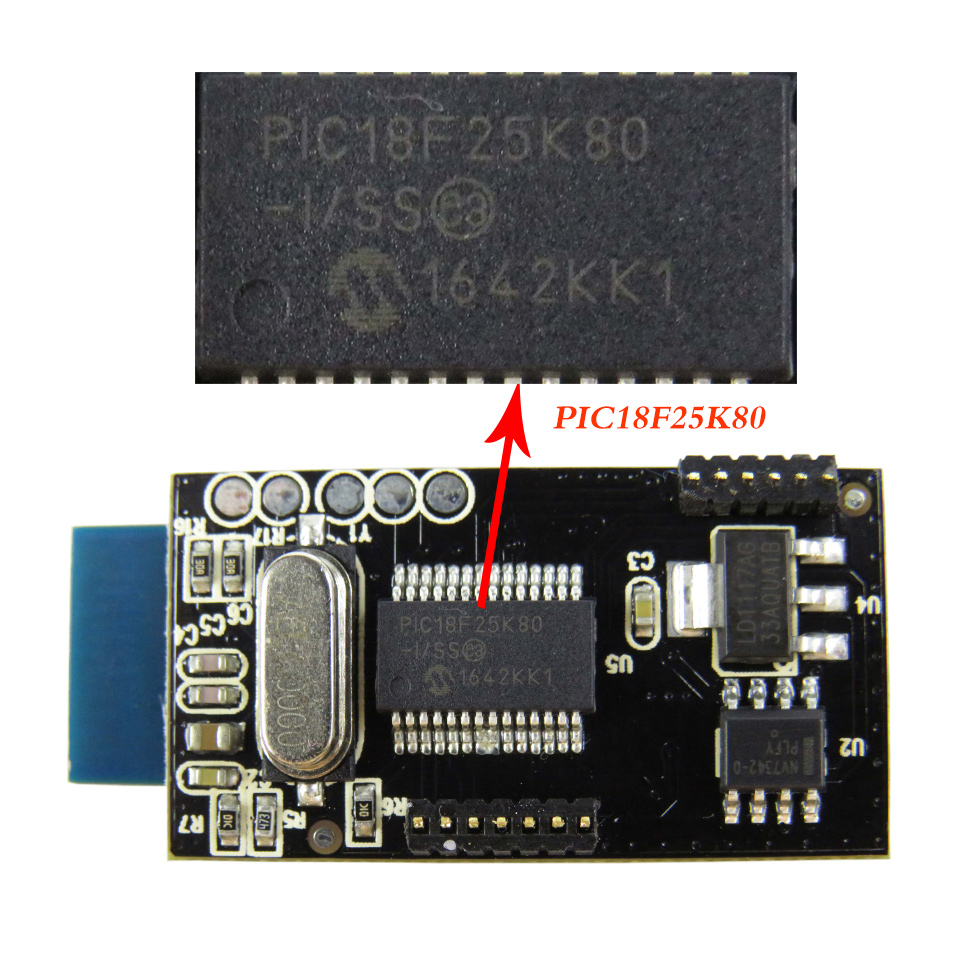

• elm327 chip:PIC18F25K80 chip
• elm327 obdii Output protocol mode: Bluetooth 4.0-4.4

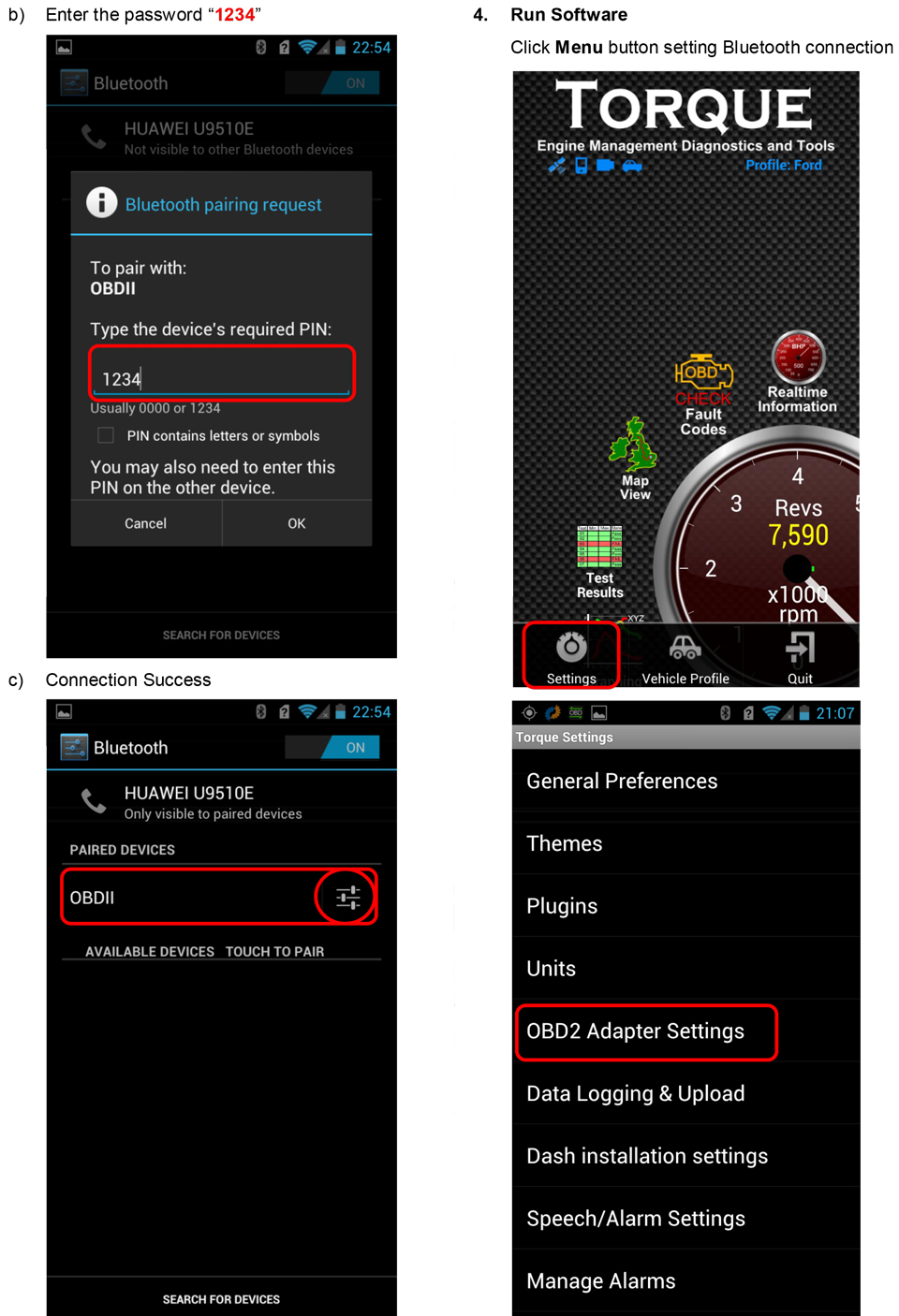

• elm327 Bluetooth Password:1234 or 0000

• elm327 obdii Color: blue

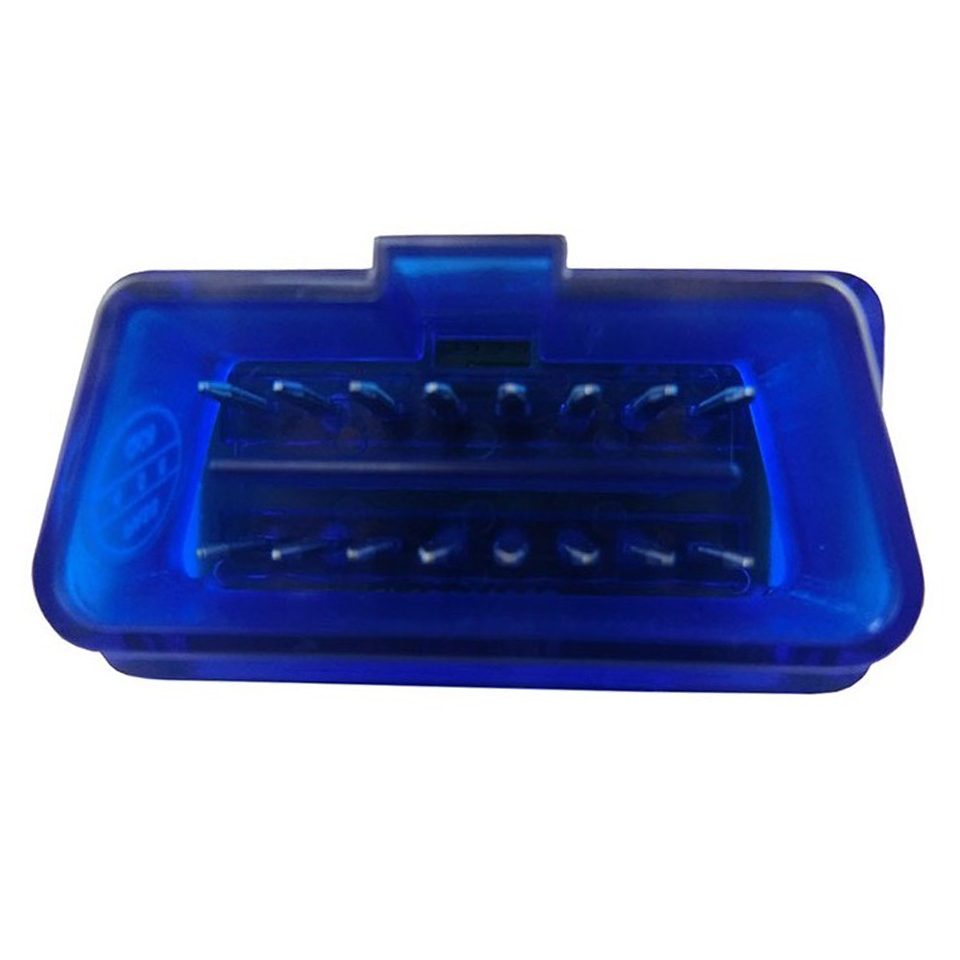

• elm327 interface:obd2 16pin

• elm327 software Version: V2.1
• elm327 Hardware Version: V1.5
• elm 327 v1.5 bluetooth Baud rate: 38400
• elm327 adapter LED indicator: Yes
• elm 327 v1.5 Operating voltage: 12V
• elm327 v1.5 bluetooth Working current: 15A

• Super MINI ELM327 Bluetooth V1.5 obd2 Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic

• code definitions in the database).

• Clear trouble codes and turn off the MIL (“Check Engine” light)

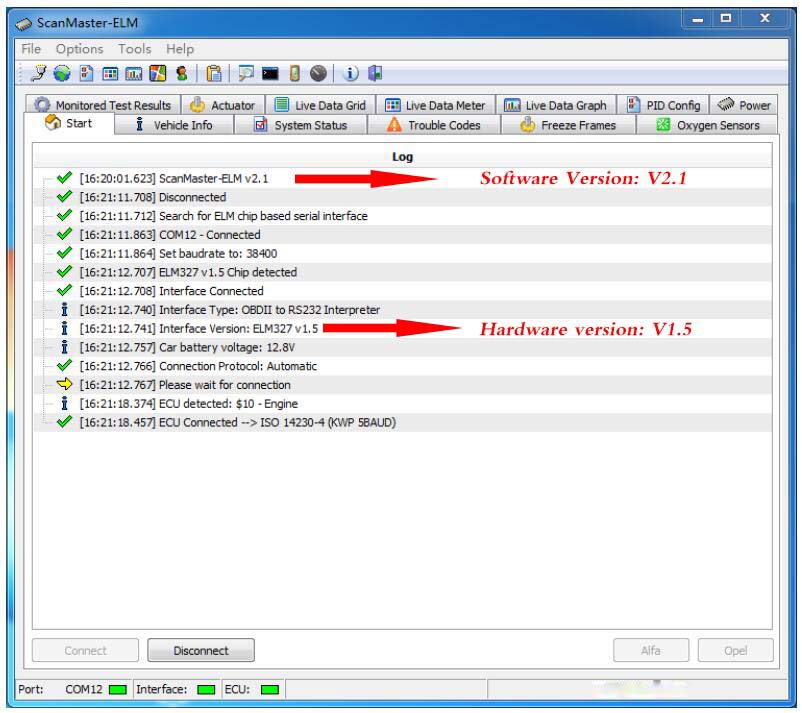

        Software Version:V2.1

        Hardware Version:V1.5

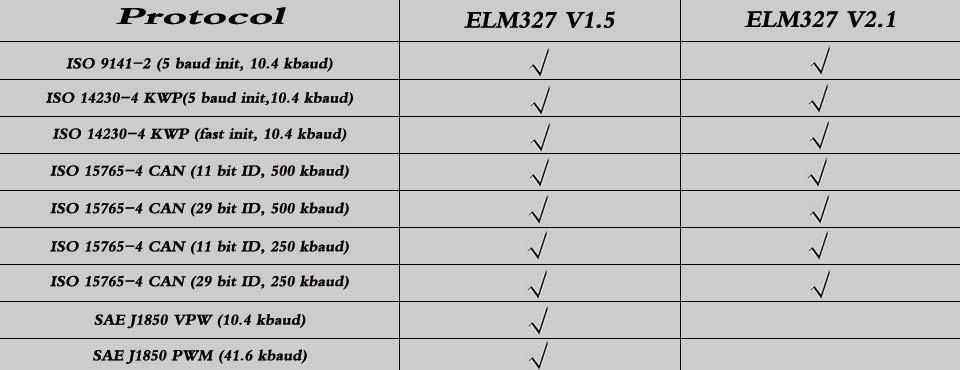

Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car

model has one of the following protocols.

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

         ELM327 v1.5 bluetooth obd2 scanner Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

• Clear trouble codes and turn off the MIL (“Check Engine” light)

• Display current sensor data, including:

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short TermFuel Trim

• Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature

• Air Flow Rate

• Absolute Throttle Position

• Oxygen sensor voltages/associated short term fuel trims

• Fuel System status

• Fuel Pressure

• Many others…

• 1pc xMINIELM327Bluetooth adapterOBDII / OBD2 ELM 327 Car Code Scannerfor Android Torque

  Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or

  negative feedback. Thanks .

Software download:
