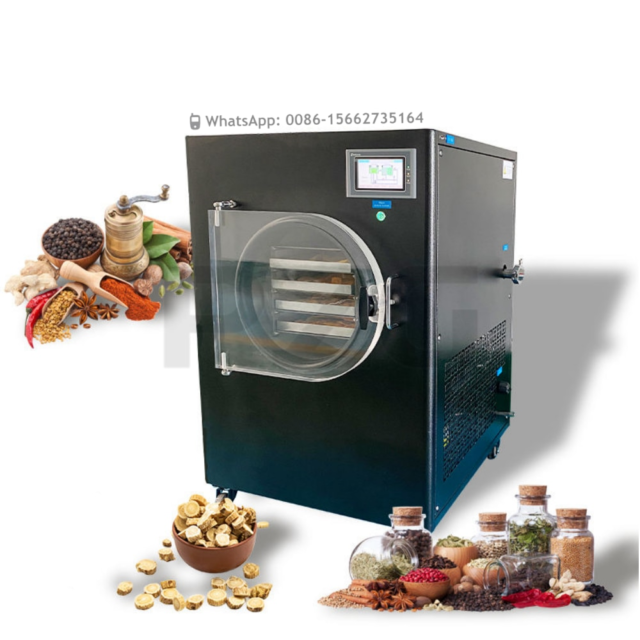

Vacuum Fruit Freeze Drying Dried Machines Mini Vegetables Lyophilizer Food Freezer Dryer

Introduction:

Lyophilization or freeze drying is a process in which water is frozen, followed by its removal from the sample, initially by sublimation (primary drying) and then by desorption (secondary drying).

Freeze drying is a process of drying in which water is sublimed from the product after it is frozen.

It is a drying process applicable to manufacture of certain pharmaceuticals and biologicals that are thermolabile or otherwise unstable in aqueous solutions for prolonged storage periods, but that are stable in the dry state.

Parameters:

1. Product Model: PZG-HFD-1

* Freeze-dried Area: 0.1㎡

* Handling Capacity: 1-2KG / batch

* Cold Trap Coil Temperature: <-40℃ (no-load)

* Ultimate Vacuum: 15pa (no-load)

* Power Supply: 220V 50HZ

* Power: 750W

* Layer Spacing: 45mm

* Weight: 50KG

* Material Tray Size: 140*278mm, three layers

* Dimension: 400*550*700mm

2. Product Model: PZG-HFD-4

* Freeze-dried Area: 0.4㎡

* Handling Capacity: 4-6KG / batch

* Cold Trap Coil Temperature: <-40℃ (no-load)

* Ultimate Vacuum: 15pa (no-load)

* Power Supply: 220V 50HZ

* Power: 1100W

* Layer Spacing: 45mm

* Weight: 80KG

* Material Tray Size: 200*450mm, four layers

* Dimension: 510*700*850mm

3. Product Model: PZG-HFD-6

* Freeze-dried Area: 0.6㎡

* Handling Capacity: 6-8kg / batch

* Cold Trap Coil Temperature: <-40℃ (no-load)

* Ultimate Vacuum: 15pa (no-load)

* Power Supply: 220V 50HZ

* Power: 2300W

* Layer Spacing: 50mm

* Weight: 120KG

* Material Tray Size: 300mm x 400mm, four layers

* Dimension: 700*800*1300mm

Main Features:

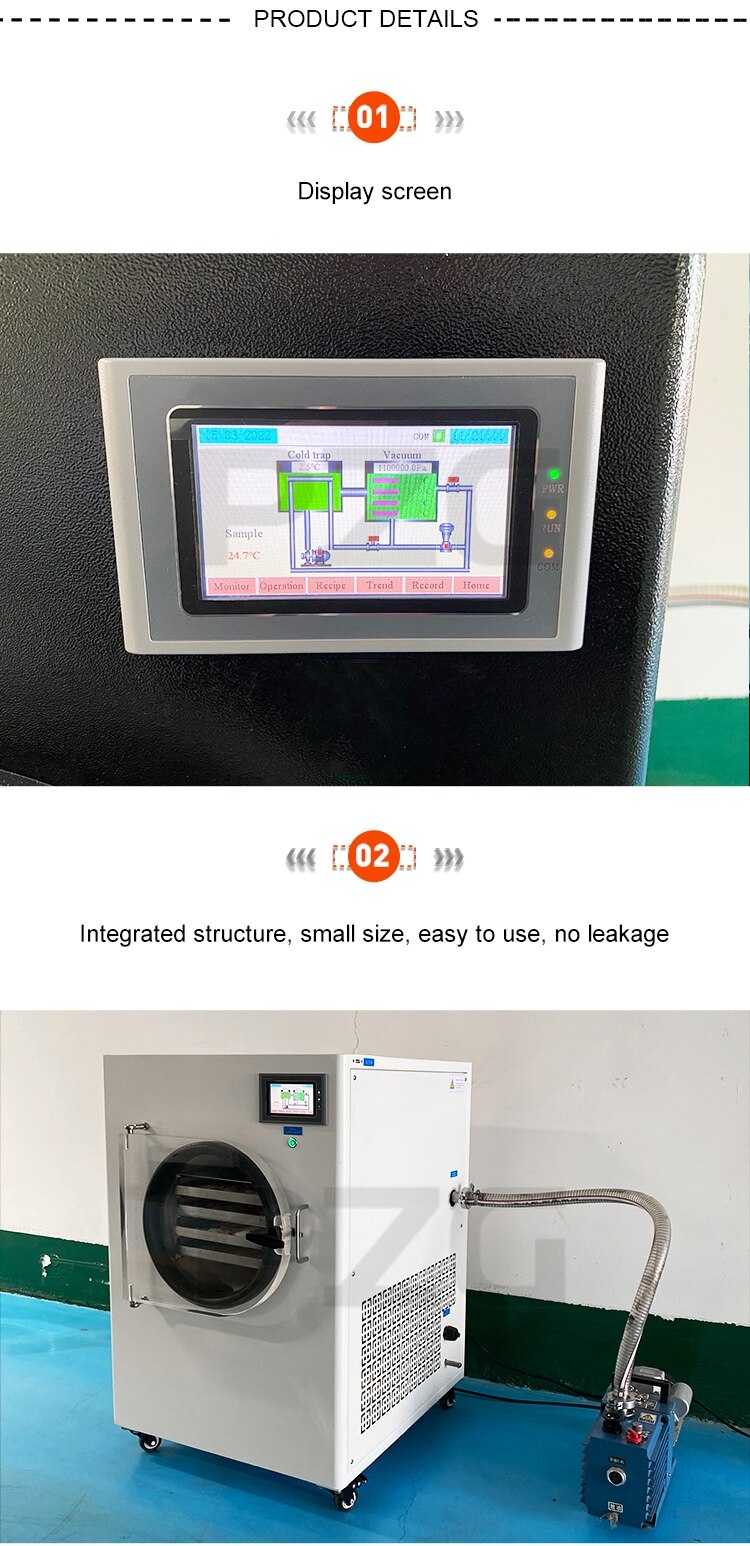

* Integrated structure, small size, easy to use, no leakage.

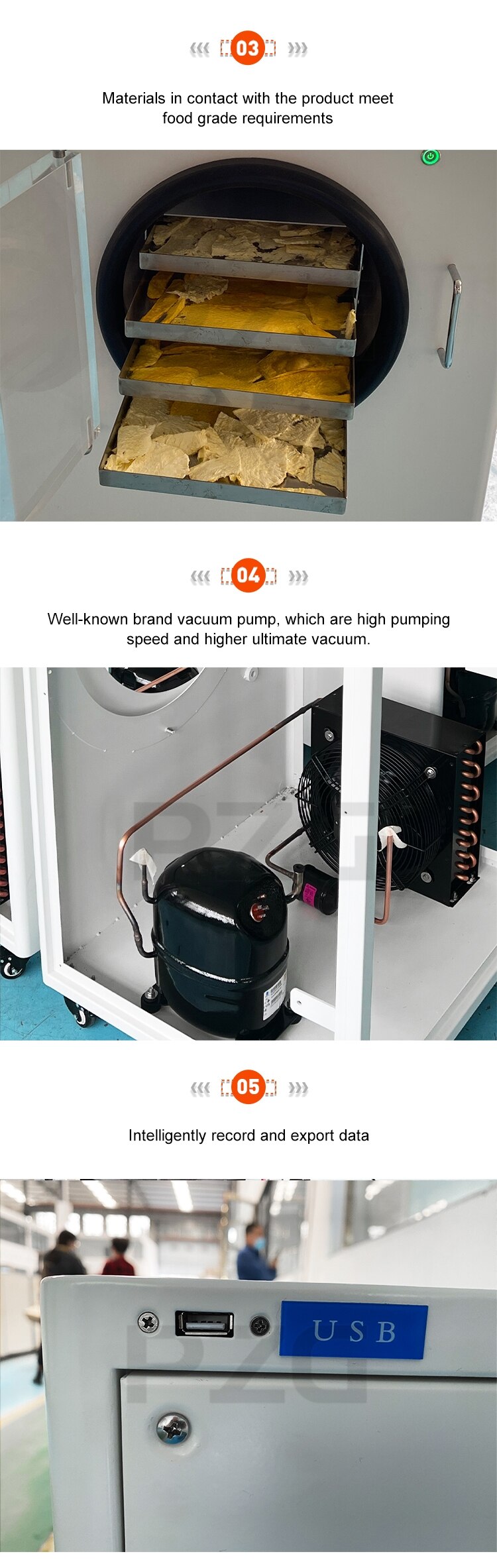

* Materials in contact with the product meet food grade requirements.

* The cold trap is made of stainless steel, which is anti-corrosion and easy to clean.

* With sample pre-freezing function.

* The cold trap captures ice evenly; strong ice capture ability.

* International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

* Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

* Intelligently record and export data.
